Polyolefin Heat Shrink Tubing Single Wall Without Glue Tubing
Ultra thin wall halogen free.flexible
heat shrink tubing.
Features
• Ultra thin wall
• Flexible
• Halogen free
• Flame retardant
• low smoke generation if burning
• Continuous operating
• Temperature:-55°C to 125°C
• Fully shrink temperature: 110°C
• RoHS and Sony compliant
Dimensions
| Size | As Supplied | After Recovery | Standard Package |
| Inch | mm | Internal Diameter mm | Internal Diameter mm | Wall Thickness mm | Spool Length M/spooF |
| 1/16 | 1.0 | 1.4±0.2 | 0.65 | 0.20 | 200 |
| | 1.5 | 1.9+0.2 | 0.85 | 0.20 | 200 |
| 3/32 | 2.0 | 2.4±0.2 | 1.00 | 0.22 | 200 |
| | 2.5 | 2.9±0.2 | 1.30 | 0.25 | 200 |
| 1/8 | 3.0 | 3.4±0.2 | 1.50 | 0.28 | 200 |
| | 3.5 | 3.9±0.2 | 1.80 | 0.28 | 200 |
| | 4.0 | 4.410.2 | 2.00 | 0.30 | 200 |
| 3/16 | 4.5 | 4.9±0.2 | 2.30 | 0.30 | 100 |
| | 5.0 | 5.5±0.2 | 2.5 | 0.32 | 100 |
| 1/4 | 6.0 | 6.5±0.2 | 3.0 | 0.32 | 100 |
| 5/16 | 7.0 | 7.5±0.3 | 3.5 | 0.32 | 100 |
| | 8.0 | 8.5±0.3 | 4.0 | 0.32 | 100 |
| 3/8 | 9.0 | 9.5+0.3 | 4.5 | 0.35 | 100 |
| | 10.0 | 10.5±0.3 | 5.0 | 0.35 | 100 |
| | 11.0 | 11.5±0.3 | 5.5 | 0.40 | 100 |
| 1/2 | 12.0 | 12.5±0.3 | 6.0 | 0.40 | 100 |
| | 13.0 | 13.5±0.3 | 6.5 | 0.40 | 100 |
| | 14.0 | 14.5±0.3 | 7.0 | 0.40 | 100 |
| 5/8 | 15.0 | 15.5±0.4 | 7.5 | 0.40 | 100 |
| | 16.0 | 16.5±0.4 | 8.0 | 0.40 | 100 |
| | 17.0 | 17.5±0.4 | 8.5 | 0.40 | 100 |
| 3/4 | 18.0 | 18.5±0.4 | 9.0 | 0.42 | 100 |
| | 20.0 | 20.5±0.5 | 10.0 | 0.45 | 100 |
| | 22.0 | 22.5±0.5 | 11.0 | 0.45 | 100 |
| 1 | 25.0 | 25.5±0.5 | 12.5 | 0.45 | 50 |
Technical Data
| I Property I | Test Method | Typical Performance I |
| Tensile strength(MPa) | ASTM D 2671 | >10.4 |
| Ultimate elongation(%) | ASTM D 2671 | >200 |
| Tensile strength after heat aged (Mpa) | 158°CX168h | N7.3 |
| Ultimate elongation after heat aged (%) | 158°CX168h | ^100 |
| Longitudinal change(%) | ASTM D 2671 | -5%~+5% |
| Flammability | ASTM D 2671 C method | VW-1 |
| Dielectric strength (kV/mm) | ASTM D 149 | >15 |
| Volume resistivity (Q-cm) | ASTM D 876 | ^1014 |
Changzhou Longchuang Insulating Material Co., Ltd is a high-tech enterprise with headquarter in Changzhou, China. Founded in 2010,The Long brand has always been a guarantee for the supply of heat shrink tubing products and services. From product design and raw materials purchasing to final inspection and testing, Longchuang has a perfect quality assurance program covering the entire production process. So far, we have been successfully certified by ISO 9001, ISO 14001, ISO/TS 16949, UL, CSA, 3C, etc.
At Longchuang, we know this can be done.
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

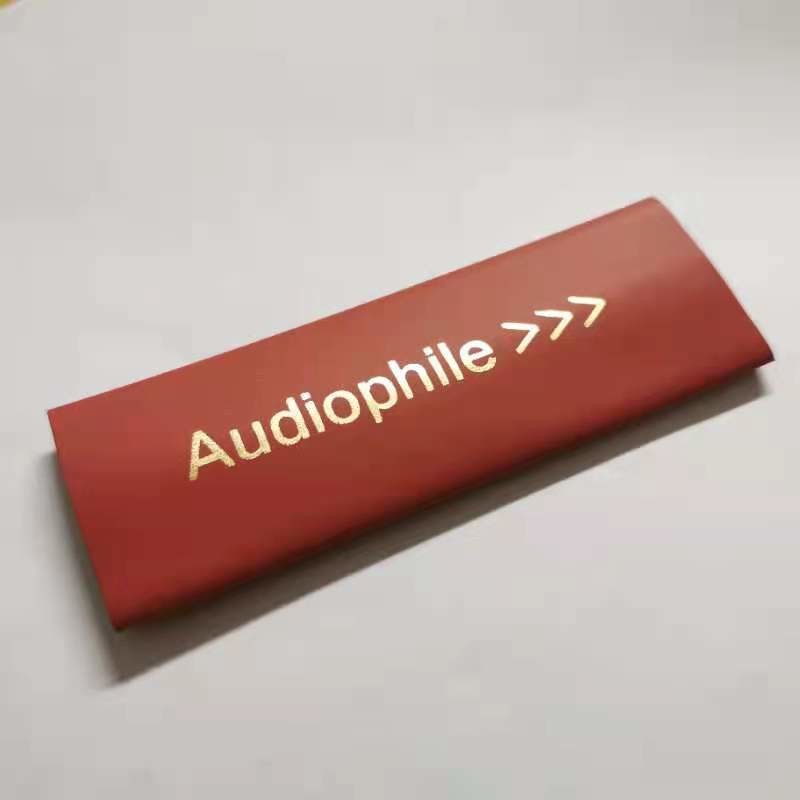

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
