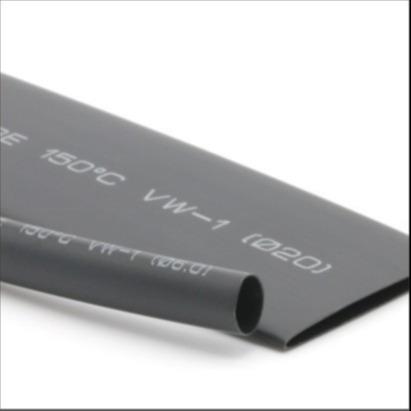

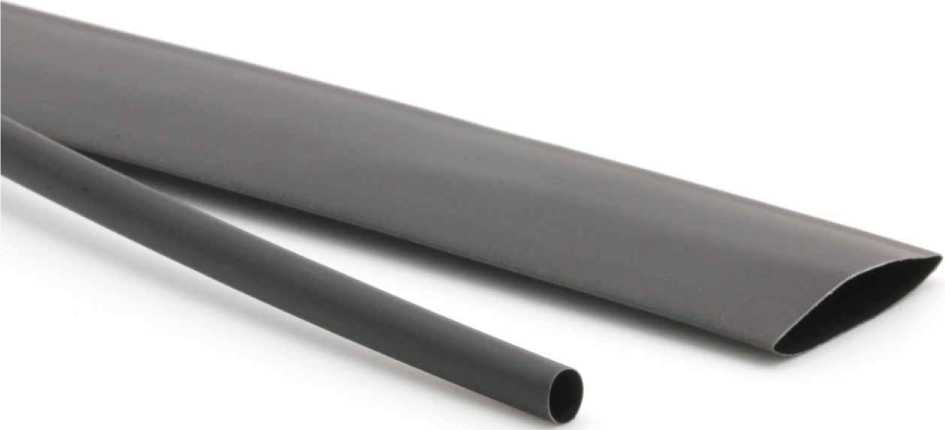

2.4mm Black Colour Thin Wall Fluoroelastomer Heat Shrink Tubing
Thin wall fluoroelastomer heat shrink tubing suitable for use in electronic systems and components in automotive, military/ aerospace and industrial applications requiring outstanding heat and fluid resistance.
Features
● 2:1 shrink ratio
● High withstand to corrosive fluids in extreme temperatures
● Flame retardant
● Very flexible
● Easy to stamped
● Continuous operating temperature:-55℃- 200℃
● Shrink temperature:175℃
● Meets 23053/ 13
Dimensions
| Size | Expanded | Recovered | Standard Package M/Spool | Round/Flat |
| Inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Wall Thickness (mm) | | |
| 1/8 | 3.2 | 3.2 | 1.6 | 0.75±0.20 | 200 | Round |
| 3/16 | 4.8 | 4.8 | 2.4 | 0.89±0.20 | 100 | Round |
| 1/4 | 6.4 | 6.4 | 3.2 | 0.89±0.20 | 100 | Round |
| 3/8 | 9.5 | 9.5 | 4.8 | 0.89±0.20 | 50 | Round |
| 1/ 2 | 12.7 | 12.7 | 6.4 | 0.89±0.20 | 25 | Round |
| 3/4 | 19.0 | 19.0 | 9.5 | 1.07±0.30 | 25 | Round |
| 1 | 25.4 | 25.4 | 12.7 | 1.25±0.30 | 25 | Round |
| 1-1/ 2 | 38.1 | 38.1 | 19.0 | 1.40±0.30 | 25 | Round |
| 2 | 50.8 | 51.0 | 25.4 | 1.65±0.30 | 25 | Round |
| Property | Test Method | Stantard | Typical Performance |
| Tensile Strengtn(MPa) | ASTM D2671 | ≥8.5 | 10.0 |
| Elongation(%) | ASTM D2671 | ≥250 | 300 |
| Tensile Strengtn after aging (MPa) | UL224 158℃X168hr | ≥7.3 | 8.5 |
| Elongation after aging(%) | UL224 158℃X168hr | ≥200 | 250 |
| Dieletric strength(kv/mm) | IEC243 | ≥15 | 17.5 |
| Volume resistivity(Ω.cm) | ASTM D876 | ≥1X109 | 2.5X109 |
| Flammability | VW-1 | Pass | Pass |
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
