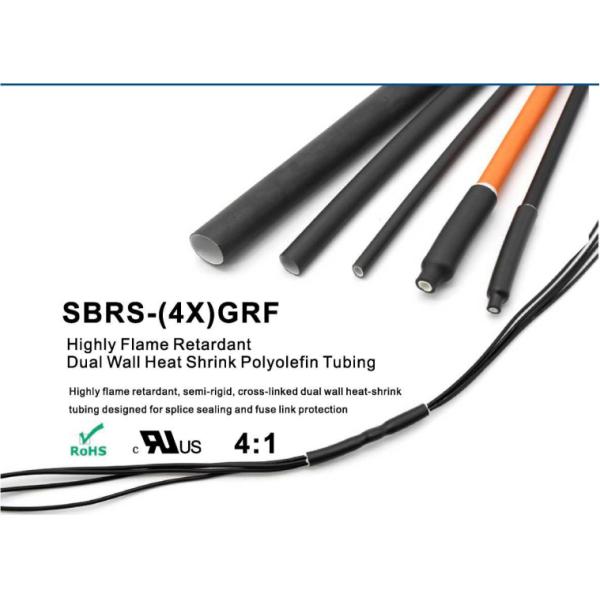

2/13 4mm 4X Black Highly Flame Retardant Dual Wall Heat Shrink Polyolefin Tubing
Highly flame retardant,semi-rigid,cross-linked dual wall heat-shrink tubing designed for splice sealing and fuse link protection.
Features
• 3:1&4:1 shrink ratio to cover varying splice configurations and substrate profiles
• Jacket and adhesive are exceptionally flame retardant
• Economical way to environmentally seal and protect automotive
fuse-links, splice and terminals
• Highly resistance to common automotive fluids and solvents
• Semi-rigid and mechanically tough outer jacket provides added
s train relief and excellent abrasion protection
• Thick adhesive liner forms an effective barrier
against fluids and moisture penetration
• Continuous operating temperature:-45°C-125°C
• Fully shrink Temperature:^125°C
Dimensions
| Size | Expanded | After Recovery | |
| | | Internal | Internal | Total Wall | Adhesive | Standard Package |
| Inch | mm | Diameter | Diameter | Thickness | Thickness | |
| | | Min(mm) | Max(mm) | Nom(mm) | Nom(mm) | |
| 2/13 | 4 | 4.0 | 0.95 | 1.40±0.30 | 0.60±0.20 | 1.22 |
| 1/4 | 6 | 6.0 | 1.27 | 1.70±0.30 | 0.80±0.20 | 1.22 |
| 5/16 | 8 | 8.0 | 1.65 | 2.00±0.30 | 0.95±0.20 | 1.22 |
| | 10 | 10.0 | 2.00 | 2.30±0.40 | 1.10±0.20 | 1.22 |
| 1/2 | 12 | 12.0 | 2.41 | 2.45±0.40 | 1.20±0.20 | 1.22 |
| 3/4 | 18 | 18.0 | 4.45 | 2.60±0.40 | 1.34±0.30 | 1.22 |
Technical Data
| I Property | Test Method | Standard | Typical Performance I |
| Tensile Strength(MPa) | ASTM D2671 | 210.4 | 11.5 |
| Elongation(%) | ASTM D2671 | >300 | 450 |
| Tensile Strength after aging (MPa) | UL224 158°CX168hr | >7.3 | 8.5 |
| Elongation after aging(%) | UI224 158°CX168hr | >200 | 350 |
| Dieletric strength(kV/mm) | IEC 60243 | >15 | 17.5 |
| Volume resistivity(Q.cm) | IEC 60093 | >1X1014 | 2.5X1014 |
Adhesive
| Property | Test Method | Standard I |
| Water Absorption | ASTM D570 | <0.2% |
| Sofening Point(°C) | ASTM E28 | 90±5 |
| Strength of pearing(PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing(AL) | ASTM D 1000 | 80N/25mm |
